The NX-102 Optical Express Hemostasis Analyzer is a portable battery-powered device.
Operating Principle
- The device performs tests of the hemostasis system using citrated whole blood.
- The test is performed using a test strip and adding a drop of blood to the well of the device.
- The analyzer is equipped with a heating element that heats the test strip to the required temperature.
- The test strip contains a rotating element with paddles that draws the sample into the reaction well after it is added to the sample well.
- The stirrer paddles rotate across the path of the infrared light beam and mix the liquid sample with the reagent that has been dried in the reaction well.
- During the clotting process, the clot is lifted by the stirrer, interrupting the path of the light beam that is recorded by the device.
- An internal timer measures the time elapsed between the start of the test and the formation of a clot.
- During the test, the clotting time (in sec.) is displayed. The prothrombin time result is also displayed as INR.
The analyzer is designed for in vitro monitoring.

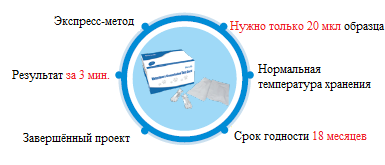

| Test name | Sample volume | Linearity limit | Reference values | Storage temperature | Expiration date | |
| Dog | Cat | |||||
| PT | 20 μL | 5-90s | 5-15s | 6-15s |
4°-30 °C |
18 months |
| INR | 20 μL | – | INR:0.5-1.6 | INR:0.5-1.6 | 4°-30°C | 18 months |
| APTT | 20 μL | 15-120s | 15-45s | 15-43s | 4°-30°C | 18 months |
| FIB | 20 μL | 1-6g/L | 1-3g/L | 1-2.5g/L | 4°-30°C | 18 months |
| TT | 20 μL | 5-90S | 8-20S | 9-19S | 4°-30°C | 18 months |
| ACT | 20 μL | 50-600s | 50-150s | 50-140s | 4°-30°C | 18 months |
Clinical implications:
- Preoperative screening
- Screening for endogenous and exogenous coagulation
- Monitoring and prevention of medical diseases
- Monitoring of oral or injectable anticoagulant drugs
- Monitoring of various diseases, such as tumors, burns, infections, and hepatitis
